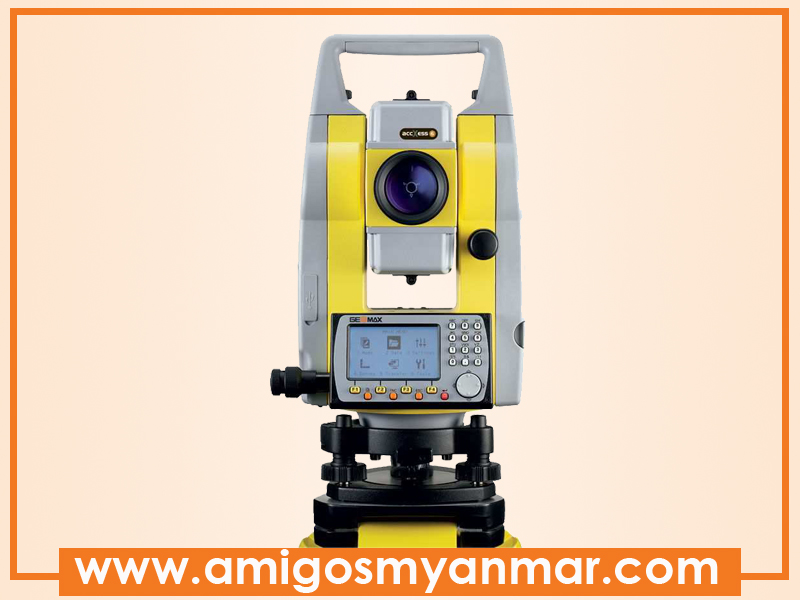

Geomax Total Station Zipp-20R-Pro

In Stock

Product SKU: Zipp-20R-Pro

Brand : GeoMax
Product SKU : Zipp-20R-Pro
Country : Switzerland

Please Login to see price

Featuring Geomax FieldGenius, X-Pad, Carlson SurvCE or any localised field software, the Zipp20 allows you to work the way that best fits your needs.
With integrated Bluetooth® and the capability to connect to any tablet or data logger, the Zipp20 provides you highest flexibility.
All this combined in a system offering a colour & touch display, long range non-prism measurement and all your favourite Window®CE that "works when yo do".

Contact Us

09-5025972, 09-400980831

This email address is being protected from spambots. You need JavaScript enabled to view it.

Angle measurements (Hz, V)
Standard deviation	:	2”, 5”
Display resolution	:	1”, 5”, 10”

Distance measurement
Prism	:	3’000 m / 2mm + 2 ppm
Reflectorless	:	3 mm + 2 ppm
Foot Print	:	12 x 24 mm**

Physical specifications
Weight	:	5.3 kg***
Operating temp	:	-20°C to 50°C
Protection class	:	IP54 dust and waterproof
Humidity	:	95 %, non-condensing

Levelling Accuracy
Standard deviation for 1km double-run leveling	:	<0.5 ”

Interface
Keyboard	:	Full alphanumeric, user definable
Display	:	3.5" Quarteer-VAG colour touch screen (320 x 240 pixel,) 10 lines x 30 characters, illuminated.
Bluetooth	:	Device Class II
Memory size	:	2 GB, internal
Interface	:	USB
Removeable memory	:	USB memory stick

Power Supply
Internal battery	:	Removeable Li-Ion 4.4Ah
Operating time	:	8 hours

Plummet
Type	:	Visible laser point
Accuracy	:	1.5 mm at 1.5 m instrument height
Operating system	:	Windows CE®
