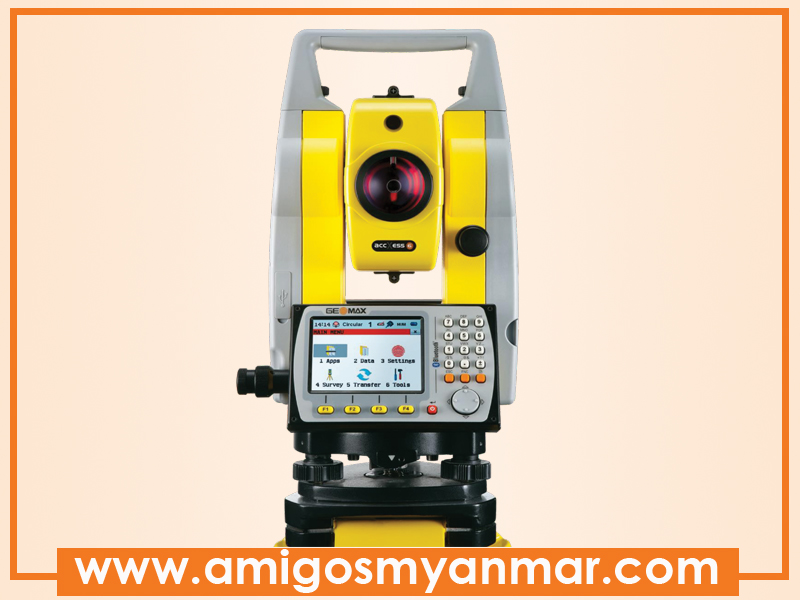

Geomax Total Station Zoom-30
Product SKU : Zoom-30
Country : Switzerland
Every Zoom30 series instrument comes with a complete range of powerful Applications. From survey and stake-out to CoGo and volume calculations the Zoom30 has an Application to get the job done.
Survey
The powerful survey App allows you to collect data quickly and accurately. Flexible coding and display
formats delivers data the way you want it. Directly export surveys with codes into CAD.
Set-up with Resection
With the simple push of a key, your station coordinates and orientation are calculated and surveying can immediately begin.
Set Out
With accurate and easy-to-use guidance you’ll be quickly complete with one point and moving to the next.
Area (3D) & Volume
The area (3D) and volume app determines the area, volume and perimeter of the plan and slope surfaces at a simple button press.
Remote Elevation
The Remote Height application allows you to easily determine the height of a point when you cannot measure a distance to the point directly. The height of the remote point is automatically computed.
Construction
With large graphical displays the staking of your construction site has never been so easy. You’ll complete construction staking easier and faster than ever before.
Reference Element
Regardless of whether you’re staking or checking a reference line or arc you’ll be amazed at the flexibility.
CoGo Routines
Easily calculate and determine points out in the field with the CoGo App. This powerful App allows you to calculate inverse, intersection, offset and line extension in a few easy steps.
Missing Line Measurement
Determine the distance, grade,azimuth and height differencebetween any two points. Determining ties is a breeze.
Two Prism Offset
Situations arise when you cannot measure a point directly. With Two Prism Offset simply place one end of the rod on the hidden point and measure to both reflectors. The coordinates of the hidden point are automatically computed.
Contact Us
09-5025972, 09-400980831
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Angle measurements (Hz, V) | ||
| Method | : | Absolute continous |
| Display Resolution | : | 1” |
| Standard deviation (ISO 17123-3) | : | 2”, 3”, 5”, 7” |
| Telescope | ||
| Magnification | : | 30x |
| Field of View | : | 1° 30’ (26 m / 1 km) |
| Minimum focus | : | 1.7 m |
| Reticle | : | 3 level reticle illumination |
| Compensator | ||
| System | : | Quadruple-axis compensation |
| Working range | : | ± 4’ |
| Setting accuracy | : | 0.5”, 1”, 1.5”, 2” |
| Distance Measurement on Reflector | ||
| Measuring range with circular prism | : | 3’500 m |
| Measuring range with 3 prisms | : | 5’400 m |
| Measuring with reflective foil (60 mm x 60 mm) |
: | 250 m |
| Accuracy (Fine/Quick/Tracking) |
: | 2 mm + 2 ppm / 5 mm +2 ppm / 5 mm + 2 ppm |
| Measuring time (Tracking/Quick/Fine) | : | 0.15 sec / 0.8 sec / 2.4 sec accXess™ EDM Reflectorless Distance Measurement |
| accXess6 Range with white target | : | 600 m |
| accXess4 Range with white target | : | 400 m |
| Range with circular prism | : | >7’500 m |
| Accuracy | : | 3 mm + 2 ppm (>500 m 4 mm + 2 ppm) |
| Measuring time | : | 3.0 – 6.0 sec |
| Communication Internal memory/storage |
: | 10’000 points (incl. measurem., coords & codes) |
| Interface | : | USB and RS232 |
| Bluetooth | : | Bluetooth connections for comm. & data transfer |
| USB Host | : | USB memory stick port for data transfer |
| Operation | ||
| Display | : | 160 x 280 pixels, 8 lines x 30 characters |
| Keys | : | Alphanumeric keys and 4 functions keys |
| Operating system | : | Windows® Embedded CE operating system |
| Laser plummet | ||
| Type | : | Laser point, brightness adjustable in steps |
| Accuracy | : | 1.5 mm at 1.5 m instrument height |
| Environmental conditions | ||
| Optional Polar version tested to | : | -30° C |
| Operating / Storage Temperature | : | -20° C ~ +50° C / -40° C ~ +70° C |
| Protection to dust and water | : | IP54 |
| Weight | ||
| Weight including battery and tribrach | : | 5.1 kg |
| Battery | ||
| Voltage/Capacity | : | ZBA400 7.4V 3800mAh |
| Operating period with continous angle measurement | : | 36 hours |
| Operating period with measurement every 30 seconds | : | 9 hours (>1’000 measurements) |
