Geomax Total Station Zoom-35Pro

In Stock

Product SKU: Zoom-35Pro

Brand : Geomax
Product SKU : Zoom-35Pro
Country : Switzerland
Please Login to see price

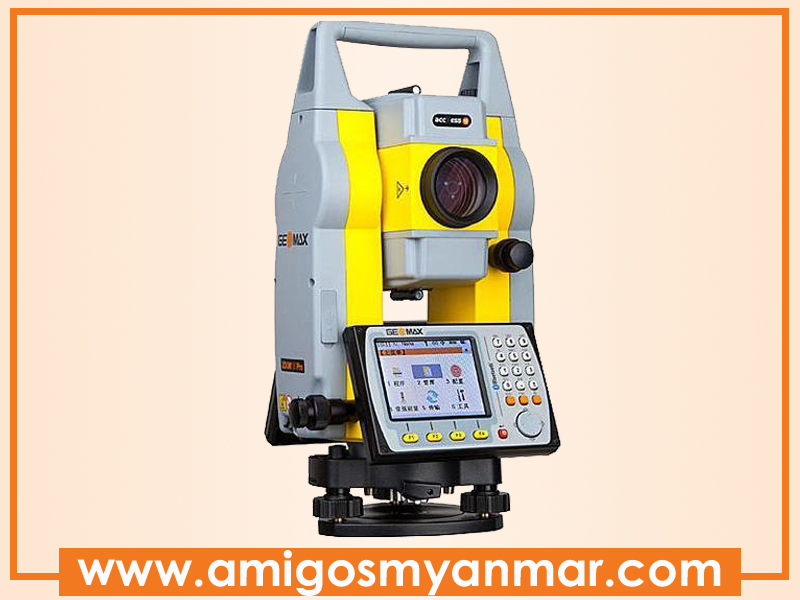

GEOMAX Zoom35-Pro A10 Total Station

With up to 1000 meter non prism refelectorless distance measurment provides everything that construction & survey professionals require for their daily work.

With complete control over your data and communication you can choose between Bluetooth, USB memory stick and USB cable to import and export your data.

Export to a variety of standard formats such as ASCII, CSV and DXF or create your own custom format.

The Zoom35-pro comes with GEOMAX Geo Office Tools, powerful office software for creating points lists, viewing survey data, creating code lists, converting data, writing additional format files etc.

Standard Applications are:

  • Survey
  • Stake Out
  • Re-section
  • Volumes & Areas
  • Reference Line
  • Reference Arc
  • Construction Layout & As Built Check
  • COGO Routines
  • Remote Elevation
  • Missing Line
  • Measurement

Features

  • Large colour touch screen display and alphanumeric keyboard.
  • Angle accuracy 5″
  • Minimum reading 1″
  • Long life battery.
  • Distance range of 7,500m to single prism
  • Non prism Reflectorless distance up 1000m
  • Distance accuracy 2mm+2ppm
  • Internal memory stores 50,000 points.
  • Angle reading selectable Degree / Gon / Mil 6400
  • Quadruple-axis electronic compensator.

 Includes

  • GEOMAX Zoom35-Pro A10
  • 1 x Rechargeable batteries
  • 1 x Battery charger
  • 1 x USB memory stick
  • 1 x USB data cable with PDF user manual file
  • 1 x User guide
  • 1 x Carry case

Contact Us

phone icon09-5025972, 09-400980831

email iconThis email address is being protected from spambots. You need JavaScript enabled to view it.

Angle measurements
Accuracy   :   1” (0.3 mgon), 2” (0.6 mgon),3” (0.9 mgon), 5” (1.5 mgon)
Display resolution : 0.1” (0.1 mgon)
Method : Absolute, continuous, diametrical
Compensation         : Quadruple axis

Distance measurement
Prism                                   : 3,500 m / 2 mm + 2 ppm
Long range : 10,000 m / 5 mm + 2 ppm
Typ. meas. time : 1 s **
Refl ectorless : > 1,000 m / 2 mm + 2 ppm***
Footprint                 : 8 x 20 mm****

Physical  specifications
Weight                                :   5.1 kg (incl. battery & tribrach)
Operating temp. : – 30°C to 50°C*****
Protection class : IP55 dust- and waterproof
Humidity : 95 %, non-condensing

Interface
Keyboard                            : Full alphanumeric
Display                                : 3.5” Quarter-VGA colour touch screen (320 x 240 pixel), 10 lines x 30 characters, self heating, illuminated
Data recording : Internal memory 50,000 pts
Interface : USB, serial & external power
Removable memory : USB memory stick
Bluetooth® : Device Class 1

Power supply
Internal battery : Removable Li-Ion 4.4 Ah / 7.4 V
Operating time : 36 h (continous angle), 9 hours (continous distance measurement every 30s)

Plummet
Type : Laser point, adjustable brightness
Accuracy : 1.5 mm at 1.5 m instrument height

Operating system
Windows® : Embedded CE
