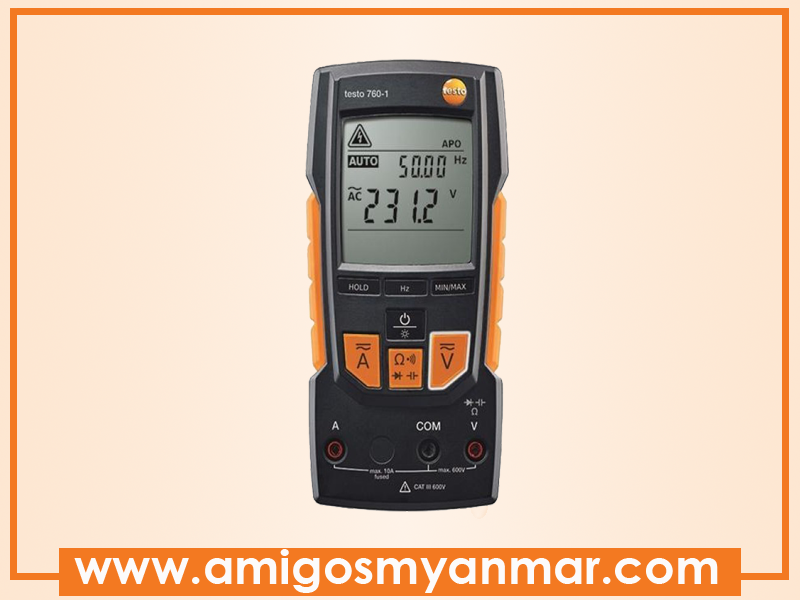

Testo 760-1 - Multimeter
Model : 760-1
Country : USA
Overview
The testo 760 digital multimeter family comprises three models for all important electrical measuring tasks. Function keys replace the traditional dial on all three instruments, which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys. This prevents accidentally blowing the meter’s fuse because of incorrect connections.
The testo 760-1 model is the standard version for virtually all daily measuring tasks.
The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement - TRMS - and a low-pass filter.
The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.
Contact Us
09-5025972, 09-400980820, 09-403997605
This email address is being protected from spambots. You need JavaScript enabled to view it.
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Operating humidity | : | 0 to 80 %RH |
| Weight | : | 340g |
| Dimensions | : | 167 x 85 x 45 mm |
| Operating temperature | : | -10 to +50 °C |
| Protection class | : | IP64 |
| Battery type | : | 2 AAA micro batteries |
| Display size | : | 2 lines |
| Interface | : | 4 measuring jacks |
| Storage temperature | : | -15 to +60 °C |
| Overvoltage Category | : | CAT III 600V; CAT IV 300V |
| Internal_resistance | : | 11 MOhm (AC / DC) |
