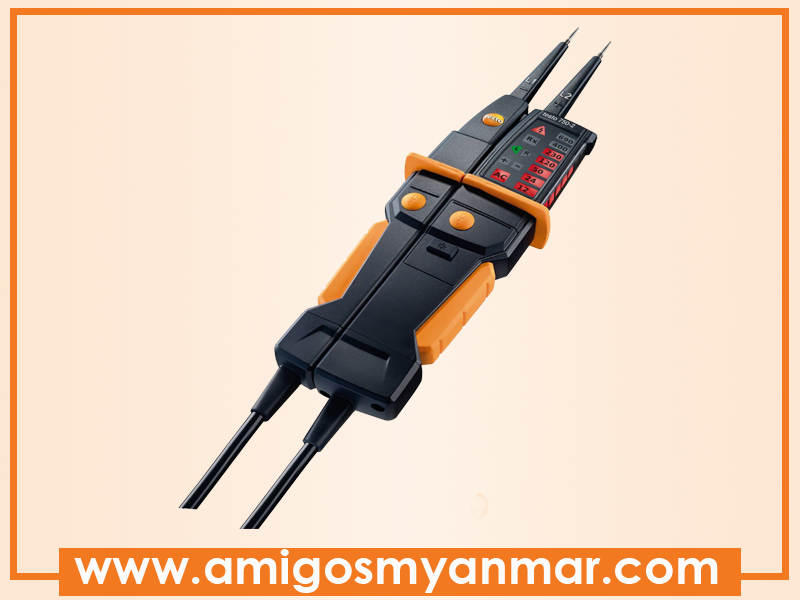

Testo 750-2 - Digital Voltage Tester with GFCI Test
Product SKU : Testo 750-2
Country : USA
-
GFCI Test Function
-
Single probe voltage testing
-
Patented all-around viewable LED voltage bar indication
-
Phase sequence test for determining motor rotation and polarity detection for VDC measurements
The testo 750-2 includes a single probe voltage tester, built-in flashlight, and GFCI test function. The 750-2/-3 can perform GFCI Circuit tests on AC outlets. When performing a GFCI circuit test, a 35 mA load is applied to the circuit. The testo 750 vibrates ensuring that the GFCI circuit test is active. The testo 750 voltage testers are the first instruments to include an all-around viewable LED voltage indication. All three models include low input impedance, phase sequence, continuity test, and meet CAT III 1000 V CAT IV 600 V safety standards.
Contact Us
09-5025972, 09-400980820, 09-403997605
This email address is being protected from spambots. You need JavaScript enabled to view it.
This email address is being protected from spambots. You need JavaScript enabled to view it.
| DC voltage | ||
| Measuring range | : | 12 to 690 V |
| Accuracy | : | according to DIN EN 61243-3:2011 |
| AC voltage | ||
| Measuring range | : | 12 to 690 V |
| Accuracy | : | according to DIN EN 61243-3:2011 |
| General technical data | ||
| Operating humidity | : | 0 to 95 %rH |
| Weight | : | 10.41 oz. / 295 g |
| Dimensions | : | 10.6 x 2.8 x 1.4 in. / 270 x 70 x 35 mm |
| Operating temperature | : | 14.0° to 122.0 °F / -10 to +50 °C |
| Product colour | : | Black |
| Protection class | : | IP64 |
| Standards | : | EN 61243-3; EN 61326-1; EN 61010-1 |
| Battery type | : | 2 AAA batteries |
| Storage temperature | : | 5.0° to 140.0 °F / -15 to +60 °C |
| Overvoltage Category | : | CAT IV 600V; CAT III 1000V |
| Authorizations | : | CSA; CE |
| Instrument Measurement Functions | ||
| Continuity testing | : | Yes |
| RDC/RC trigger function | : | Yes |
| Rotating magnetic field testing | : | Yes |
| Single pole phase testing | : | Yes |
| Measuring point illumination | : | Yes |
