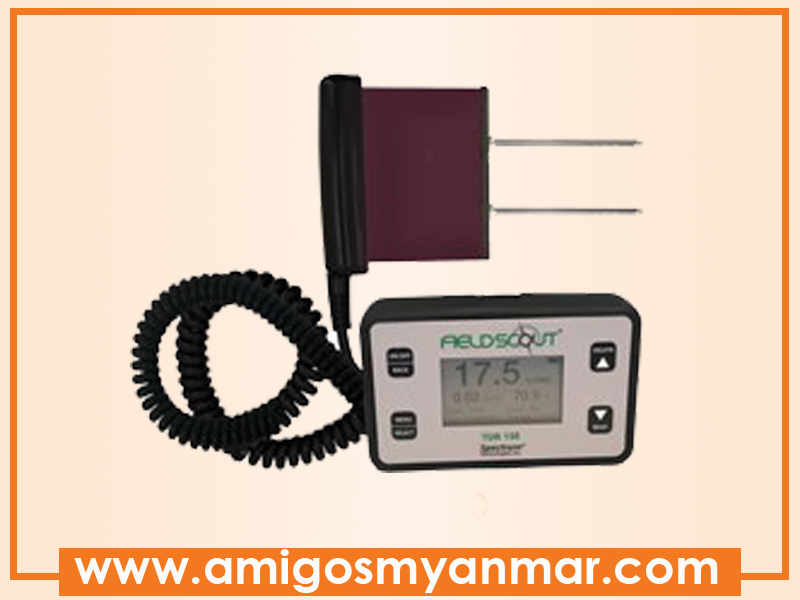

FieldScount Soil Moisture Meter with Case TDR-150
Product SKU : TDR-150
Country : USA
Performance, Upgraded.
Portable soil moisture meter allows you to obtain readings on the go at the press of a button. Variable rod length options provide soil moisture measurements at your ideal root zone. With new enhancements, the TDR 150 provides significant improvements in performance and measurement accuracy for optimal turf and soil environments.
- Increased accuracy of soil moisture (Volumetric Water Content)
- Measures EC (Electrical Conductivity)
- Measures Turf Surface Temperature
- Option to add on Bluetooth and GPS
- Data logger records approximately 50,000 measurements
- Industry exclusive backlit display
- Ergonomic handle
- Data collected with USB flash drive
- No PC interface needed
- Powered by AA lithium batteries
- Ideal for measuring containers on benches
- Optional IR Temp sensor to measure canopy
- This product is warranted to be free from defects in material or workmanship for two years from the date of purchase.
Note: Rods are required for TDRs to function
Manage with the FieldScout Mobile App
Capture and analyze measurements on your turf using Blutooth wireless technology on our FieldScout TDRs 350, 300, 150 and Trufirm.
- Visualize field readings in real time and e-mail relevant information
- Upload to SpecConnect Web Portal and view your entire course’s data at once and export for further analysis (Pro Features)
- Color-coded to represent a scale of turf firmness, moisture, surface temperature and EC
- Free download from App store or Google Play
- Works on iOS and Android devices
- 2-year warranty (serial number 3000 and above)
Contact Us
09-5025972, 09-400980820, 09-403997605
This email address is being protected from spambots. You need JavaScript enabled to view it.
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Measurement Principle | : | Time - domain measurement methods |
| Measurement Units: | : | Percent Volumetric Water Content (VWC) |
| Resolution | : | 0.1% VWC |
| Accuracy | : | +- 3.0% VWC with Electrical Conductivity (EC) < 2 mS/cm |
| Range | : | 0% to saturation (Saturation up to about 50% volumetric water depending on soil type) |
| Battery/ Life | : | 4 AA lithium batteries; approximately 100,000 readings without backlight |
| Data Logger | : | 50,000 measurements |
| EC | : | Range: 0 to 5 mS/cm, Resolution: 0.01 mS/cm, Accuracy: +/- 0.1 mS/cm |
| Temperature | : | Range: -30°C to 60°C, Resolution: 0.1°, Accuracy: +/- 1°C |
