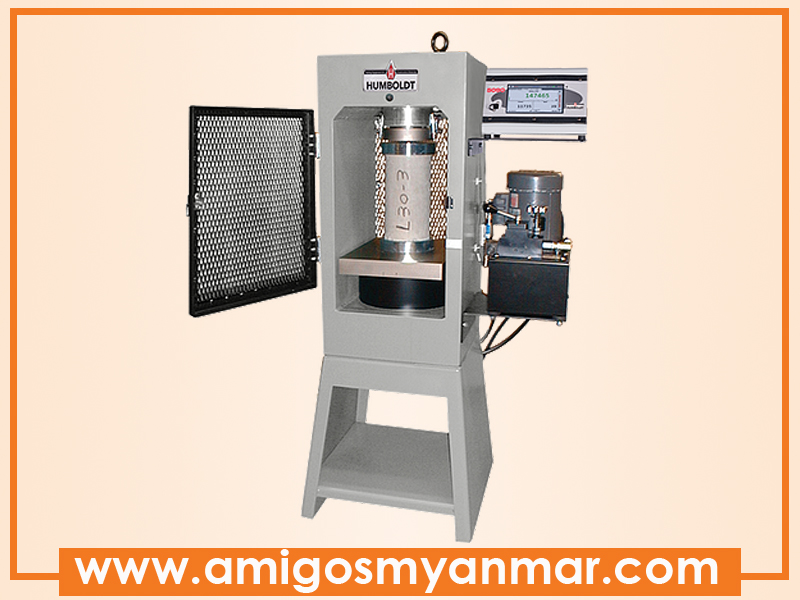

Humboldt Compression Machine HCM-1500EN.5F
Brand : Humboldt
Product SKU : HCM-1500EN.5F
Country : USA
Product SKU : HCM-1500EN.5F
Country : USA
- Suitable for cylinders, cubes, beams and cores of high-strength concrete mixe
- 5000 to 500,000 lbf (22.2 to 2224kN)testing range with accuracy of ±0.5% of indicated load
- Suitable for concrete strength up to 14,000 psi for 6" diameter cylinders
- Standard configuration includes platens to test 6" x 12" (150mm X 300mm) cylinders.
- Three choices of digital control
- Optional test platens and accessories available
- Large frame opening to allow easier loading of test specimens
- Mounting stand is INCLUDED
Contact Us
09-5025972, 09-443087709, 09-777258535, 09-254629088, 09-403997619
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Vertical Opening | : | 18.375" (467mm) |
| Horizontal Opening | : | 18.375" (467mm) |
| Piston Stroke | : | 2.5" (63.5mm) |
| Lower Platen | : | 12.5" x 18" (318 x 475mm) |
| Oil Reservoir Cap | : | 2 gal (7.6 liter |
| Overall Width | : | 30" (762mm) |
| Overall Depth | : | 23.750" (603mm) |
| Overall Height | : | 60.625" (1540mm) |
