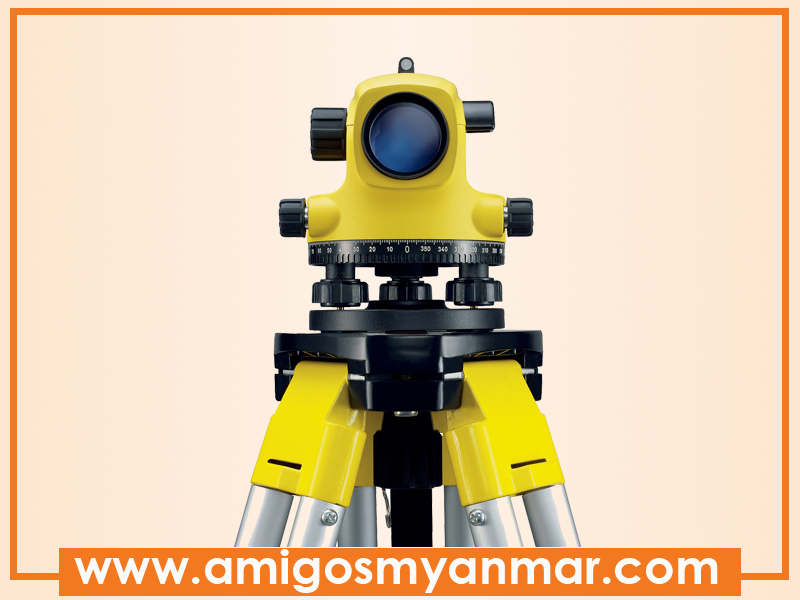

Geomax Automatic Level ZAL-132
Brand : Geomax
Product SKU : ZAL-132
Country : Switzerland
Product SKU : ZAL-132
Country : Switzerland
Suitable for outdoor as well as for indoor use the user friendly ZAL100 Auto Level Series from GeoMax is your guarantee to get the job done, accurate and on time. With the ZAL100 Series GeoMax introduces an automatic level to the construction industry designed for your daily leveling tasks with outstanding price-to-performance ratio. Meeting the IP54 class specifications guarantees all weather operation ofthe ZAL100 Series and provides you withan instrument that “Works when you do!”.
Contact Us
09-5025972, 09-400980831
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Telescope | ||
| Objective aperture | : | 36 mm clear objective lens |
| Magnification | : | 32 x |
| Image | : | Erect |
| Field of view | : | < 2.1 m at 100 m |
| Minimum focusing distance | : | < 1.0 m |
| Reticle | : | Cross hairs, with stadia lines |
| Stadia multiplication constant | : | 100 |
| Stadia additive constant | : | 0 |
| Compensator | ||
| Damping system | : | Automatic, air-damped |
| Working range | : | ± 15 ’ |
| Setting accuracy (standard deviation) | : | <0.5 ” |
| Levelling Accuracy | ||
| Standard deviation for 1km double-run leveling | : | <0.5 ” |
| Horizontal Circle | ||
| Diameter | : | 106 mm |
| Graduation / Intervals | : | 360 ° / 1 ° |
| General | ||
| Sensitivity of circular bubble | : | 8 ’ / 2 mm |
| Mirror for circular level | : | Plane mirror |
| Horizontal fine motion screws | : | Double-sided endless drive |
| Dust and Water resistance | : | Conforms to IP54 (IEC60529) |
| Base / Base screw | : | Concave and flat / 5/8 ” |
| Weight | : | 1.5 kg |
| Operating temperature range | : | -20 ° C to +40 ° C |
