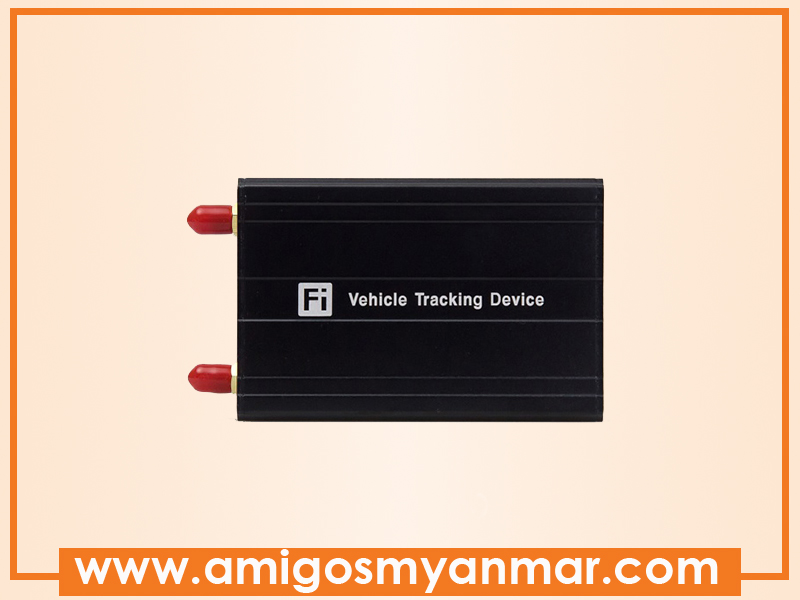

FIFO Multi-function vehicle tracker A100
Model : A100
Country : China
A100 is a multifunctional model which is suitable for fleet management, public transportation management, school bus management, Taxi operation management, vehicle insurance company management, rent car management and private car antitheft, etc. It can integrate with different sensors and collect the specific data as per customers' requirements. Besides, A100 has core functions to meet users' demands, such as harsh acceleration/braking alarm, driving behavior analysis, custom digital input, jamming detection, two-way calling and OTA. A100 use own FIFOTRACK GPRS PROTOCOL which is simple and practical, this enables the customers to integrate on their own platform efficiently.
Contact Us
09-5025972, 09-420120080, 09-400980831
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Dimension | : | 90*60*27mm |
| Weight | : | 160g |
| GSM Module | : | SIMCOM800C |
| GPS Module | : | U-blox7Q |
| Input Voltage | : | DC 11~36V/1.5A |
| Internal Battery | : | 600mAh/3.7V |
| Power Consumption | : | 30-35mA standby current |
| Internal Battery Lif | : | Standby 100 hours,normal working mode 10 hours |
| Operating Temperature | : | -20℃~70℃ |
| Humidity | : | 5%~95% |
| LED Light | : | 3 LED lights indicating GPS/GSM/External power status |
| Button/ Switch | : | 1SOS Button, 1 power switch |
| Flash Memory | : | 8MB |
| Sensor | : | 3D Acceleration Sensor |
| GSM Frequency Band | : | GSM 850/900/1800/1900MHz |
| GPS Sensitivity | : | -161dBm |
| GPS Start Speed | : | Cold start 29s Hot start 1s |
| Position Accuracy | : | 10m |
| I/O Port | : | 3 Digital inputs: 1 negative input 1 positive input 1 custom input, default positive 1 Analog input, 12bits resolution, 0-30V 2 Output 1 Microphone port 1 Speaker port |
