FIFO Basic Motorcycle Vehicle GPS Tracker S20
Brand : FIFO
Model : S20
Country : China
Model : S20
Country : China

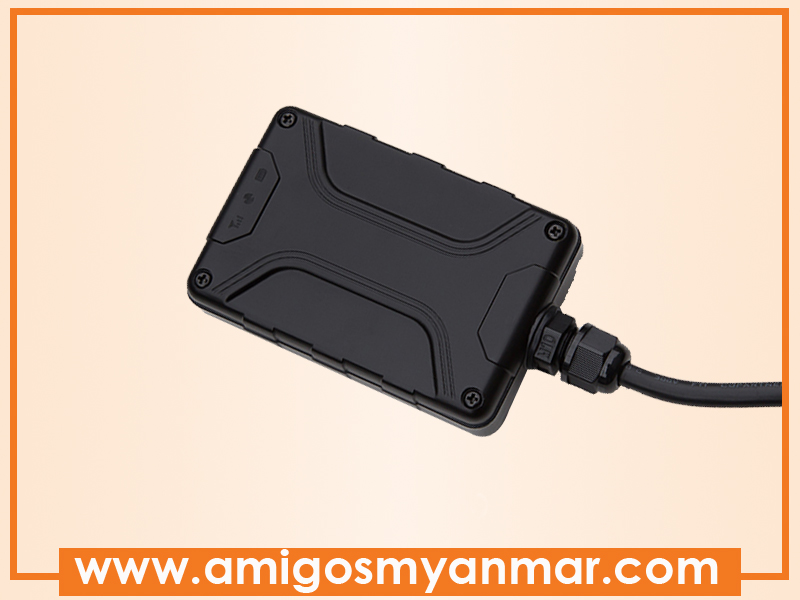

S20 is a light model which is suitable for motorcycle, vehicle, boat, asset tracking, etc. Power input range is 8-92V with industrial design.
The Core features of S20 include internal GPS/GSM antennas, IP66 waterproof, 2 digital input, 1 analog input and 1 output. S20 is being offered 2 years warranty to customers.
S20 uses own FIFOTRACK A01 GPRS PROTOCOL which is simple and practical, this enables the customers to integrate protocol into their own platform efficiently.
Contact Us
09-5025972, 09-420120080, 09-400980831
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Dimension | : | 80*53*21mm |
| Weight | : | 157g |
| GSM Module | : | SIMCOM800C |
| GPS Module | : | U-blox7Q |
| Input Voltage | : | DC 8~92V/1.5A |
| Internal Battery | : | 300mAh/3.7V |
| Power Consumption | : | 30-35mA standby current |
| Internal Battery Lif | : | 2 hours under 10 seconds time interval 3.6 hours under 600 seconds time interval |
| Operating Temperature | : | -20℃~70℃ |
| Humidity | : | 5%~95% |
| LED Light | : | 3 LED lights indicating GPS/GSM/External power status |
| Button/ Switch | : | 1 power switch (inside case) |
| Flash Memory | : | 8MB (GPRS data 20400 units, SMS data 320 units) |
| Sensor | : | 3D Acceleration Sensor |
| GSM Frequency Band | : | GSM 850/900/1800/1900MHz |
| GPS Sensitivity | : | -161dBm |
| GPS Start Speed | : | Cold start 35s Hot start 1s |
| Position Accuracy | : | 10m |
| I/O Port | : | 2 Digital inputs – input1 is smart input, can be configured to negative or positive input, default is negative. Input2 is positive input for ACC. 1 Analog input, voltage range is 0-12V 1 Output 1 USB port (inside case) |
