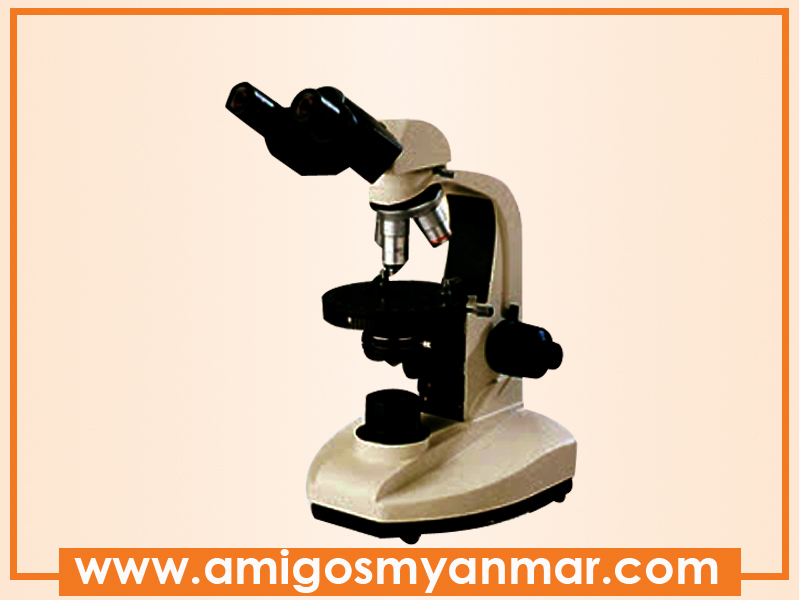

M-shot Simple Polarizing Microscope MP-20
Model : MP 20
Country : China
MP20 Polarizing Microscope is a kind of essential instrument for studying and identifying the materials with double refraction characteristics, by using polarizing feature. This microscope is widely used in many fields, such as observation of crystalline inclusions, muscle tissue, nerve tissue, plant fiber and other structural details of the teeth, bone, and living cells, as well as analysis of drug composition and properties.
Furthermore, in the field of inorganic chemistry, the fine structure of crystallization conditions of various kinds of salts which cannot be seen in natural light can be observation through polarizing microscope.
Contact Us
09-5025972, 09-400980820, 09-403997605
This email address is being protected from spambots. You need JavaScript enabled to view it.
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Eyepiece | : | Wide field WF10X(Φ18mm) |
| Objective | : | Achromatic objective 4X/0.10 Achromatic objective 10X/0.25 Achromatic objective 40X/0.65 (Spring) Achromatic objective 100X/1.25(Spring, oil) |
| Observation tube | : | Trinocular, inclined 30° |
| Analyzer | : | Sliding |
| Focus system | : | Coaxial coarse/fine focus system, with tension adjustable and limit stopper,minimum graduation in fine movement is 2μm |
| Nosepiece | : | Quadruple (Backward ball bearing inner locating) |
| Stage | : | Rotatable stage (Diameter:Φ120mm) |
| Abbe condenser | : | NA.1.25 Rack & pinion vertical adjustable |
| Filter | : | Blue filter Frosted glass |
| Polarizer | : | 360° rotatable |
| Condenser | : | For illumination with halogen lamp and field diaphragm |
| Illumination unit | : | 6V 20w, halogen bulb, brightness adjustable |
