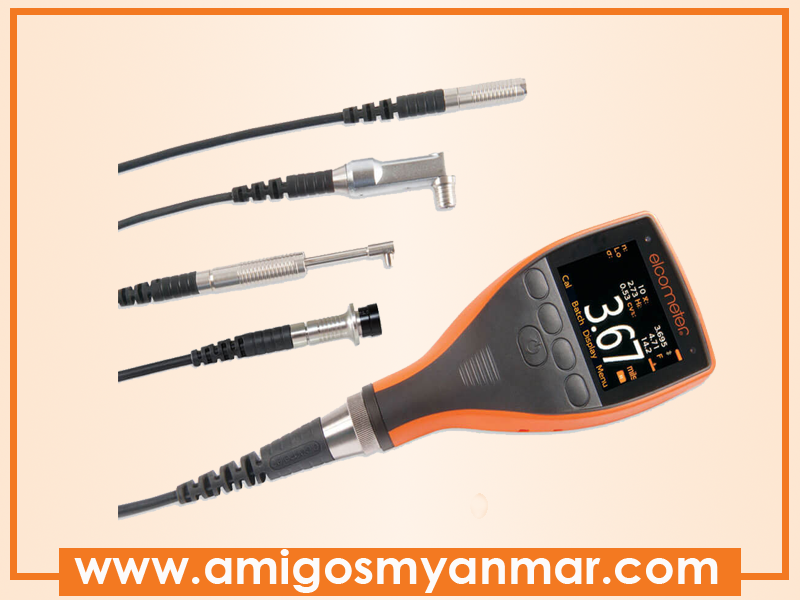

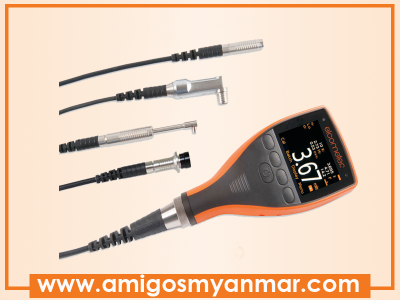

Elcometer 456 Coating Thickness Gauge
Model : Elcometer-456
Country : USA
Elcometer 456 Coating Thickness Gauge
The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.
The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T.
Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results.
Separate coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.
Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.
Features
- Large buttons ideal for gloved hands
- Easy to use menus in multiple languages
- High contrast colour LCD with auto rotate
- High and low reading limit indicators
- Factory calibrated for immediate use
Accurate
- Thickness measurement capability to ±1%
-
Can be used in accordance with National & International Standards
- Temperature stable measurements
- Increased reading resolution for thin coatings
- Measures accurately on smooth, rough, thin and curved surfaces
Reliable
- Repeatable and reproducible
- 2 year gauge warranty
- Supplied with fully traceable test certificates
- Batch date and time stamp facility
Rugged
- Sealed, heavy duty and impact resistant
- Dust and waterproof equivalent to IP64
- Scratch and solvent resistant display
- Durable gauge and probe construction
- Suitable for use in harsh environments
Efficient
- Fast reading rate of 70+ per minute, 140+ per minute with Scan Probe
- Multiple calibration memories
- Alpha numeric batch identification
- User selectable calibration methods
- Compatible with ElcoMaster® and ElcoMaster® Mobile App
Powerful
- Wide range of interchangeable probes
- USB and Bluetooth® data output to iPhone* or Android™ devices
- Stores up to 150,000 readings in 2,500 batches
- Measures up to 31mm (1220mils) of coating on metal substrates
Contact Us
09-5025972, 09-443087709, 09-777258535, 09-254629088, 09-403997619
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Integral Model Options | ||||
| Scale 1 | Range: 0-1500μm (0-60mils) | Accuracy*: ±1-3% or ±2.5μm (±0.1mil) | ||
| Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm (0.01mil: 0-5mils; 0.1mil: 5-60mils) | ||||
| Model B | Model S | Model T | C | |
| Elcometer 456 Ferrous Integral | A456CFBI1 | A456CFSI1 | A456CFTI1 | ● |
| Elcometer 456 Non-Ferrous Integral | A456CNBI1 |
See separate gauges with N2 PINIP™ Probe |
See separate gauges with N2 PINIP™ Probe |
● |
| Elcometer 456 Dual FNF Integral | A456CFNFBI1 | A456CFNFSI1 | A456CFNFTI1 | ● |
| Scale 2 | Range: 0-5mm (0-200mils) | Accuracy*: ±1-3% or ±20μm (±1.0mil) | ||
| Resolution: 1μm: 0-1mm; 10μm: 1-5mm (0.1mil: 0-50mils; 1mil: 50-200mils) | ||||
| For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance | ||||
| Model B | Model S | Model T | C | |
| Elcometer 456 Ferrous Integral | A456CFBI2 |
See separate gauges with F2 PINIP™ Probe |
See separate gauges with F2 PINIP™ Probe |
● |
| Scale 3 | Range: 0-13mm (0-500mils) | Accuracy*: ±1-3% or ±50μm (±2.0mils) | ||
| Resolution: 1μm: 0-2mm; 10μm: 2-13mm (0.1mil: 0-100mils; 1mil: 100-500mils) | ||||
| Model B | Model S | Model T | C | |
| Elcometer 456 Ferrous Integral | A456CFBI3 |
See separate gauges with F3 PINIP™ Probe |
See separate gauges with F3 PINIP™ Probe |
● |
| Separate Model Options | ||||
| Model B | Model S | Model T | C | |
| Elcometer 456 Ferrous Separate | A456CFBS | A456CFSS | A456CFTS | ● |
| Elcometer 456 Non-Ferrous Separate | A456CNBS | A456CNSS | A456CNTS | ● |
| Elcometer 456 Dual FNF Separate | A456CFNFBS | A456CFNFSS | A456CFNFTS | ● |
| Probes are supplied separately | ||||
