M-Shot Stereo fluorescence Microscope MZ-81
Model : MZ-81
Country : China

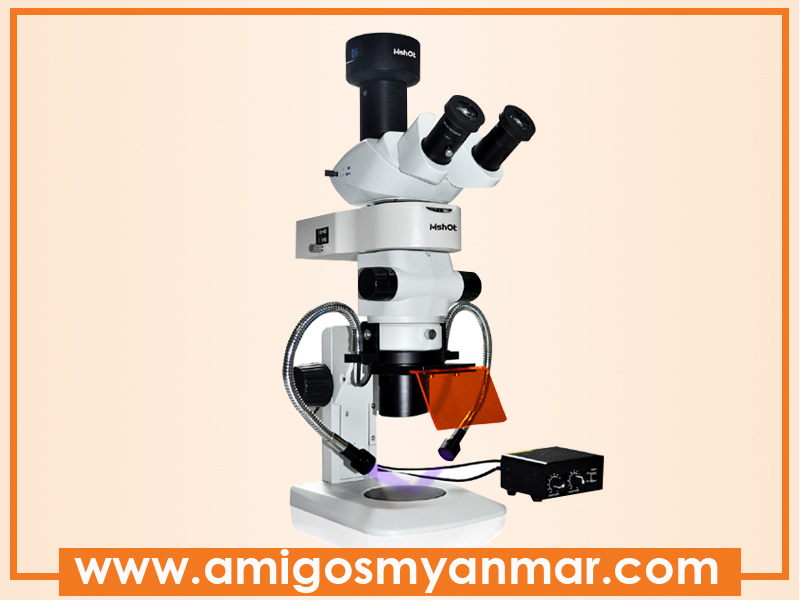

Stereo fluorescence microscope MZX81 is consist of Olympus SZX7 stereo microscope and epi fluorescent attachment, the epi fluorescent attachment is equipped with high bright LED light source. On the basis of Olympus SZX7 stereo microscope excellent optical performance and high brightness fluorescent illumination, the MZX81 microscope provides a superior fluorescent observation performance. The microscope can offer blue and green filter groups in one unit, and support high quality GFP requirement. It's excellent for GFP, nematode,drosophila,zebrafish and embryo fluorescence research. And widely used in biomedicine, in-vivo research, criminal investigation,mineral research ,etc.
Contact Us
09-5025972, 09-400980820, 09-403997605
This email address is being protected from spambots. You need JavaScript enabled to view it.
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Eyepieces | : | SWF 10X ,F.N. 22 |
| Observation tube | : | SZX-TR30 lead-free observation head Trinocular, 30° inclination light path mode: eyepiece 100%， photography 80%, eyepiece 20% |
| Zoom system | : | Zoom radio: 7:1（0.8×~5.6×Magnification times calibration：0.8，1， 1.25，1.6，2，2.5，3.2，4，5，5.6；Screw fixed objective mode |
| Objectives | : | 1X 0.5 X、0.75 X、1.25 X、1.5 X、2.0 X（Optional） |
| Magnification times | : | 8X — 56X |
| Working distance | : | 90mm |
| Base | : | SZ2-ST standard base，with fluorescence plate M-FL Transmitted fluorescence accessories SZ2-ILA、H-150（optional） |
