ACE RC Type Inclinometer Casing RC-70
Model : RC- 70
Country : Korea

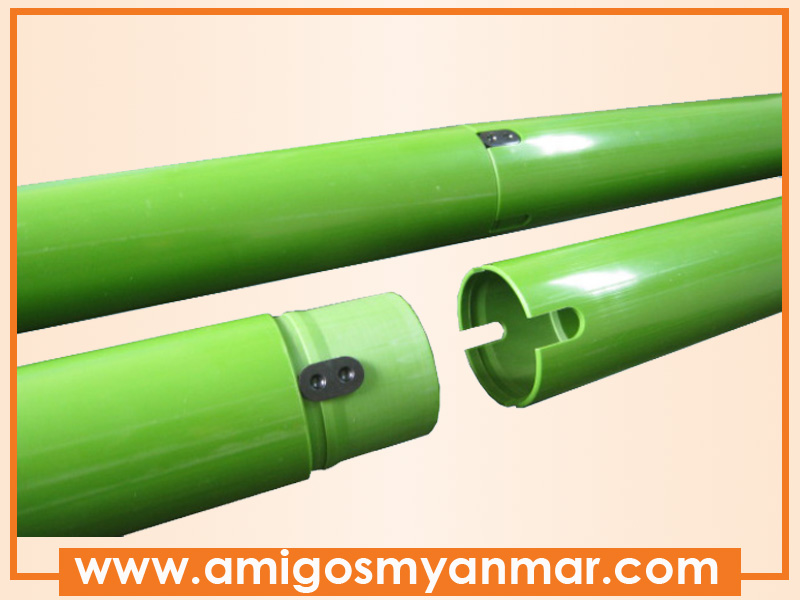

RC type inclinometer casing is the high-precision casing which coupling (Sleeve) is not required. And also four internal guide grooves inside of inclinometer casing are proceed by a broaching machine. Internal and outer surface of RC type inclinometer casings are proceed by CNC machine, and the connection part is manufactured in a precision structure not to come out because the casing is connected as a snap-in type. To improve the waterproof and the strength of connection, ABS solvent bond should be pasted on the connection part of casings. After RC type inclinometer casing is connected each other, it doesn’t require riveting, and taping And there are two types of RC type inclinometer casing such as 59mm and 73mm according to internal diameter. And if the big displacement is expected, the telescopic section should be used. In case of using RC 70, it can be installed with NX drill, and in case of RC 85, 100m drill should be used to install it.
Contact Us
09-5025972, 09-443087709, 09-777258535, 09-254629088, 09-403997619
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Casing | ||
| ID, OD | : | Ø59×70mm |
| Groove depth | : | 2mm |
| Thickness | : | 5.5mm |
| Weight | : | 3.6kg/3m |
| Spiral | : | Less than 0.33˚ / 3m |
| Cutting length | : | 1.5m / 3m |
| Collapse strength | : | More than 600kg / f |
| Operating temperature | : | -30 ~ 80 ℃ |
| Material | : | High impact ABS resin |
| Bottom cap | ||
| Dimension | : | Ø58 × Ø70 × 50mm |
| Material | : | High impact ABS resin |
| Weight | : | 0.44kg |
| Top end cap | ||
| Dimension | : | Ø51 × Ø70 × 35mm |
| Material | : | High impact ABS resin |
| Weight | : | 0.36kg |
| Telescopic section | ||
| Expandable length | : | 150mm |
| Material | : | High impact ABS resin |
| Dimension | : | 70×600mm |
| Weight | : | 0.6kg |
